vis.js
a visual interaction system

Vis.js is a dynamic, browser based visualization library. The library is designed to be easy to use, to handle large amounts of dynamic data, and to enable manipulation of and interaction with the data. The library consists of the components DataSet, Timeline, Graph, and Graph3d.

The vis.js library is developed by Almende B.V, as part of CHAP. Vis.js runs fine on Chrome, Firefox, Opera, Safari, IE9+, and most mobile browsers (with full touch support).

Install

npm

npm install vis

bower

bower install vis

download

Click here to download vis.js (version 1.1.0)

Example

A basic example demonstrating how to use the vis.js timeline is shown below. See the gallery below for more examples.

<!doctype html>
<html>
<head>
  <link href="http://visjs.org/dist/vis.css" rel="stylesheet" type="text/css" />
  <script src="http://visjs.org/dist/vis.js"></script>
</head>
<body>
  <div id="mytimeline"></div>

  <script type="text/javascript">
    // DOM element where the Timeline will be attached
    var container = document.getElementById('mytimeline');

    // Create data
    var data = [
      {id: 1, content: 'item 1', start: '2013-04-20'},
      {id: 2, content: 'item 2', start: '2013-04-14'},
      {id: 3, content: 'item 3', start: '2013-04-18'},
      {id: 4, content: 'item 4', start: '2013-04-16', end: '2013-04-19'},
      {id: 5, content: 'item 5', start: '2013-04-25'},
      {id: 6, content: 'item 6', start: '2013-04-27'}
    ];

    // Configuration for the Timeline
    var options = {};

    // Create a Timeline
    var timeline = new vis.Timeline(container, data, options);
  </script>
</body>
</html>

Gallery

This gallery gives an idea of the features and possibilities of the library. The source code of the examples can be found in the examples directory.

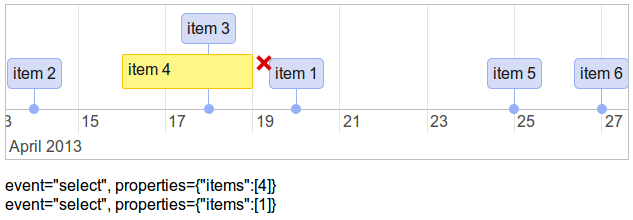

Timeline

The timeline from vis.js displays different types of data on a timeline.

a lot of grouped data

item class names

navigation menu

Graph

The graph from vis.js visualizes graphs and networks with customizable styles.

fully random nodes clustering

scale free graph clustering

hierarchical layout predefined

physics configuration

graphviz gallery

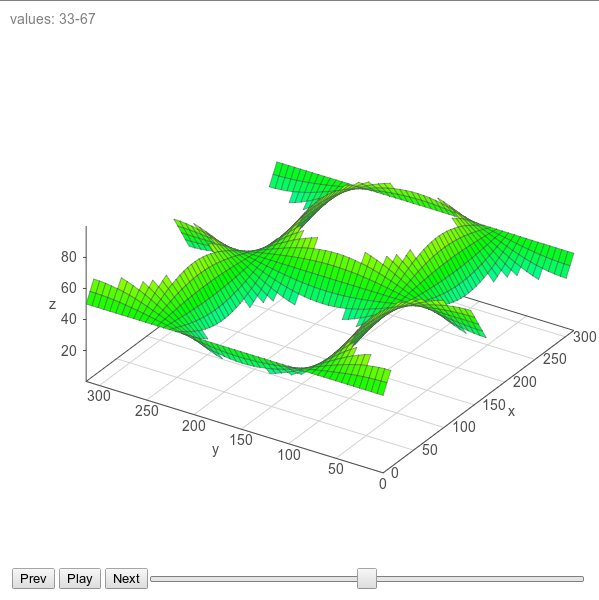

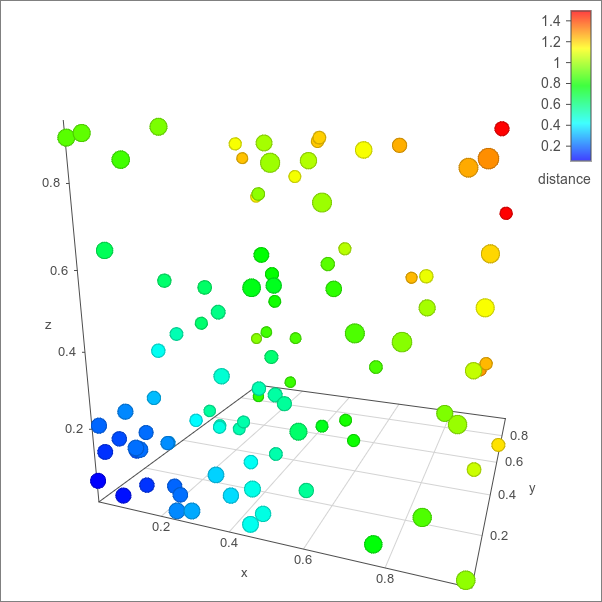

Graph3d

The Graph3d from vis.js visualizes three and four dimensional data.

Docs

Documentation is available here: Documentation

License

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.
