This a very high level review post that I am making for myself and other people taking CS Theory. If you want to lean about the theory behind the content in this blog post I recommed looking else where. This post will cover how to solve typical problems relating to topics covered by my second CS Theory exam.
Myhill-Nerode Theorem
Definition
L is regular if and only if it has a finite index. The index is the maximum number of elements thar are pairwise distibguishable. Two strings are said to be pairwise distinguishable if you can append something to both of the strings and it makes one string accepted by the language and the other string non-accepting. The size of an index set X equals the number of equivalence classes it has. Each element in the language is accepted by only one equivalence class.
Problem Approach
Prove that language L is regular.
-
Define a set X which is infinite in size - this doesn;t necesarrily need to be in the language.
-
Make a general argument that show that each element in X is pairwise distinguishable. Pick any two elements x, y in X and show that if you append z to them one is accepted by the language and the other is not in the language.
Example
Prove the following language is non-regular:
$$ L={ww^r | w \in {0,1}^*} $$
answer:
$$ X = {(01)^i | i \geq 0} $$
Pick any 2 elements of X and show pairwise distinguishable
$$ x = (01)^i, y = (01)^j | i \neq j $$
suppose we pick
$$
z = (10)^i\
xz \in L\
yz \notin L
$$
DFA minimization algorithm
Types of Problems:
- Prove DFA is minimal
- Minimize the DFA
The argument for DFA minimization comes from the Myhill-Nerode theorem. Given a DFA, if you can form a set of strings which represent each state and they are all pairwise distinguishable, then the DFA is minimal with that many states.
Prove DFA is minimal
For these types of problems you simply construct a table and show that each state is pairwise distinguishable. To show pairwise distinguishably you have to show that there exists a string where if appended to one element makes it accepted by the language but pushes the other string out of the language.
Example
Prove the following DFA is minimal.
Find a set of strings which represent the minimal path to each state in the DFA.
$$ X = {\epsilon, b, bb, ba} $$

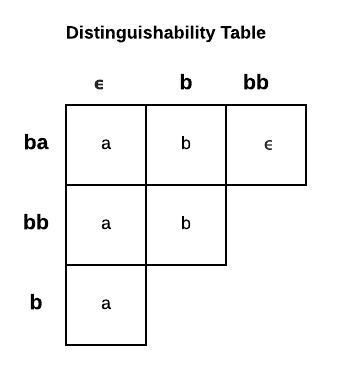

Show that each state is pairwise distinguishable.
Minimize the DFA
To use this concept of being indistinguishable to minimize a DFA, you can use a table to keep track which states are distinguishable from each other. The states which are not indistinguishable can be combined. To solve one of these problems you start by creating a table which compares each of the states in the DFA. You then go through and mark the states which are indistinguishable -- start with the ones with different accepting statuses. Then you continue marking off states where if you transition with a symbol on the DFA you are distinguishable and the other state is non-distinguishable according to the table.
Example

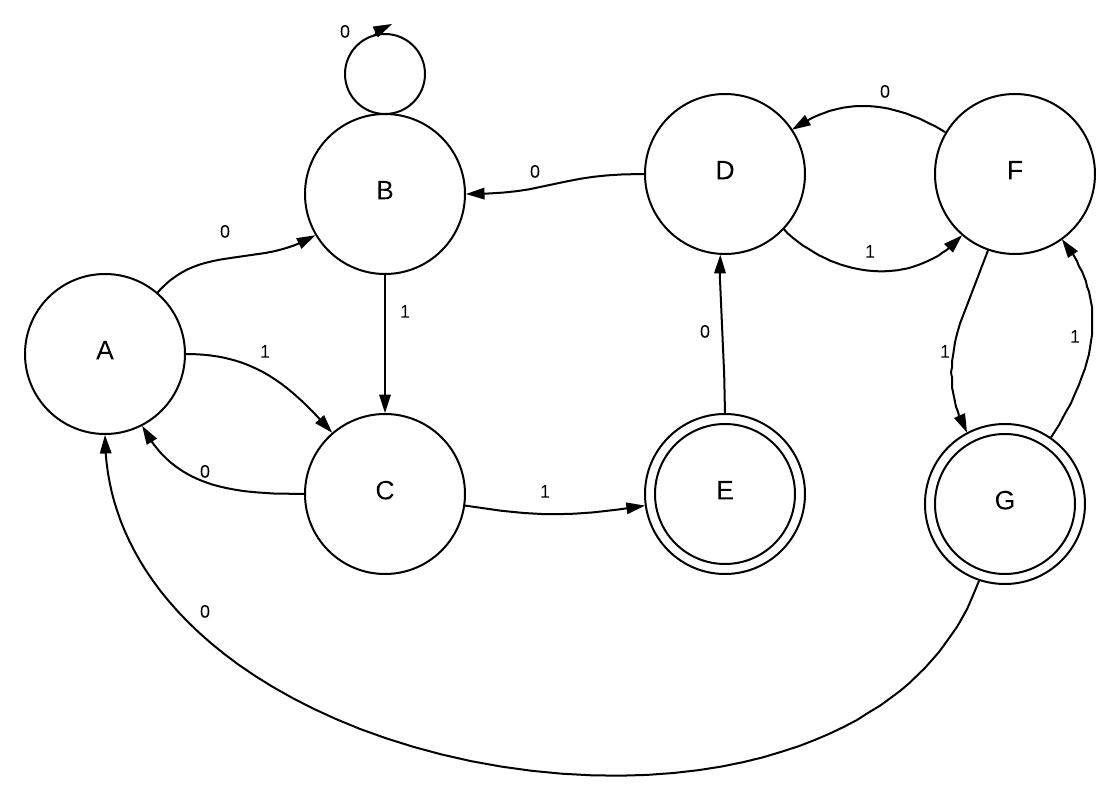

Minify the Following DFA:
After marking the states with different accepting criteria as being distinguishable you get this table:
After looping through all pairs and marking them on the table if there exists symbol which results in one state to be distinguishable and one to be indistinguishable you get this table:
According to the table you are able to combine {D, A, B}, {C, F}, and {E, G}.
Minimal DFA:
Pumping lemma for regular languages
The pumping lemma cannot prove that a language is regular, however, you can use it to show that some languages are non-regular. This theory gets at the idea that if a regular language is long enough/infinite, it will have a state somewhere which is repeated on the path that accepts the string.
The accepted strings can be divided into three parts:
- Symbols leading up to the loop
- Symbols which complete a loop and come back to start of loop
- Symbols at the end of the string
To Show that a language L is not regular using pumping lemma:
- Proof by Contradiction
- Assume L is regular
- Choose a representative string S which is just barely in the language and is represented in terms of p.
- Express S = xyz such that |xy| < p and y > 0
- Show that you can pump y some amount of times such that it is not in the language.
- This contradicts the pumping lemma.
- The assumption that L is regular is wrong.
- L must not be regular.
Example
Show that the following language is non-regular.
$$ {0^n1^n | n \geq 0} $$
Proof by contradiction
Assume that L is regular.
Let p be the pumping length associated with L
$$ S = o^p1^p $$
S is valid since
$$ |s| \geq p, S \in L $$
For any valid decomposition
S = xyz
such that |xy| <= p and |y| > 0
Consider:
$$ xy^2z $$
By the pumping lemma this should be in the language but it is not. Therefore our assumption that the language is regular is false.
Context-free grammars, closure properties for CFLs
The context-free grammars are a superset of the regular languages. This means that CFG's can represent some non-regular languages and every regular language is also a CFL. Contest-free Languages are defined by Context-Free Grammars and accepted using Pushdown Automata machines.
Context Free Grammars are Represented using:
- Terminals = Set of symbols in that language
- Variables = Set of symbols representing categories
- Start Symbol = Variable which you start with- written on top
- Substitution Rules = Set of rules that recursively define the language.
Example 1
Grammar G:
$$
A \rightarrow 0A1 \
A \rightarrow B \
B \rightarrow # \
$$
This grammar describes the following language:
$$ L = {0^k#1^k | k \geq 0} $$
Example 2
Give CFG for non-Palindromes
$$
S \rightarrow aXb | bXa | aSa | bSb | ab | ba \
X \rightarrow aX | bX | a | b \
$$
In this example, the S rule states in that recursive state until something that is not a palindrome is found. Once you exit the S state, you can finish by appending anything to the middle of the string.
Example 3
Give CFG for the following language:
$$ {a^ib^jc^kd^l | i+k = j + l} $$
$$
S \rightarrow aSd | XYZ \
X \rightarrow aXb | \epsilon\
Y \rightarrow bYc | \epsilon\
Z \rightarrow cZd | \epsilon
$$
